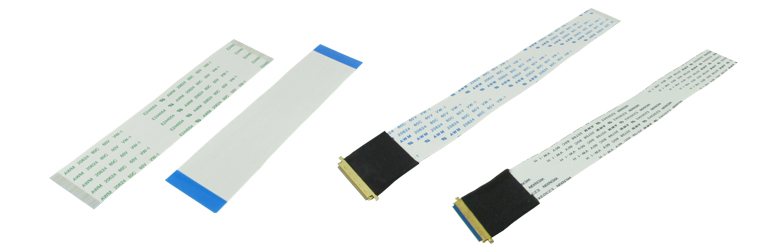

Taitek FFCs are a RoHS compliant flat flexible cable solution, insulated with Polyester or Polyimide tapes, and used as simple one-to-one hookup jumpers found on LCDs, mother-boards, touch screens, cameras and other various devices.
This solution is fully compatible with space saving, low profile LIF (Low Insertion Force) and ZIF (Zero Insertion Force) connectors, which are also offered by Taitek.
FEATURES
• Extremely small dimensions
• Low profile - narrow width - fine pitch
• Simple and fast installation: and time saving • cost reduction
• Compatible with ZIF/LIF connectors
• Excellent flexibility and flex-life
WHY TAITEK
LIF and ZIF connectors offer SMT automated board assembly, and easy insertion and removal of the cable for service. It is available in standard pitch sizes of 0.50, 0.625, 0.80, 1.00, 1,25, 1.27, and 2.54mm, 0 to 60 conductors, 1-9999mm length, and same side or opposite side end orientation, with or without backers.
Our cables are offered in both UL2896 (30V, 80°C) and UL2643 (300V, 105°C) ratings. Taitek FFC cables are considerably less expensive than those from Parlex, Molex, etc. with no sacrifice in performance.
